Magnetic Linear Lighting Optical Reflector SL-RF-AQ-137B

Short Description:

Place of Origin: Guangdong, China
Brand Name: Shinland
Material: Optical grade PC, Optical grade PC
Shape: Round
Style: Optical PC reflector
Color:Vaccum Aluminum Plating
Diameter L:27.4mm W:27.4mm H:21.9 mm
Angle: 12°, 34°,48° Application: Led lights
Certification:ROHS,UL
Packing: Dust-proof, shock-proof packing, Tray packing


Product Detail

Product Tags

Product Specification

1) Type: Optical grade PC reflector for led light
2) Model Number: SL-RF-AQ-137A-RWW
3) Material: PC

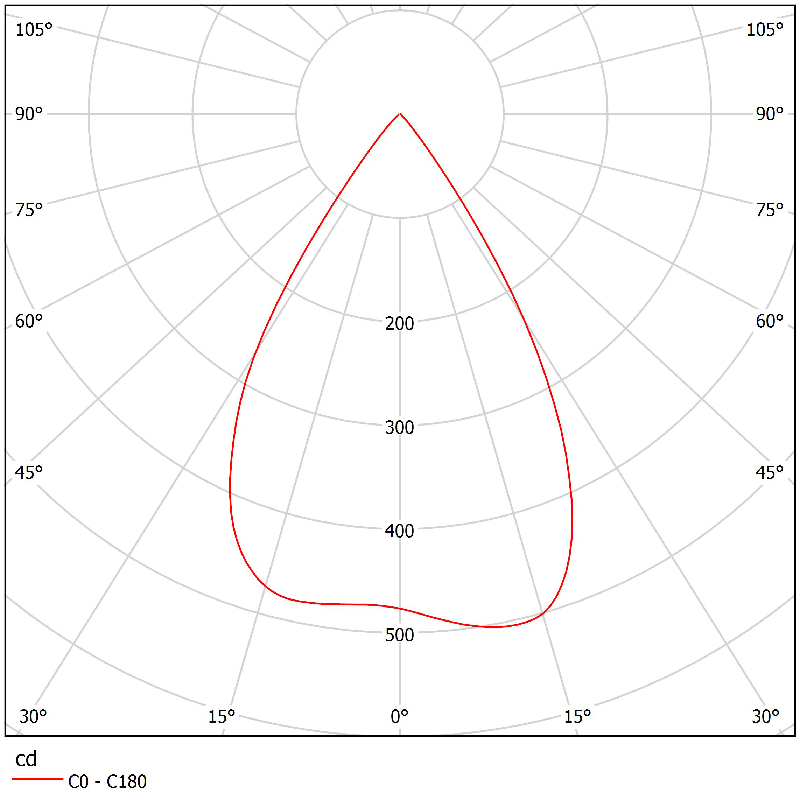

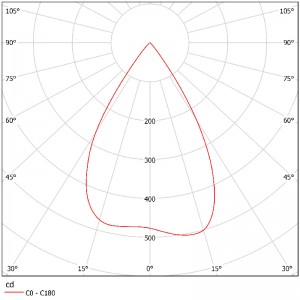

4) View Angle(Fwhm):  63°*63°
5)  Reflective Efficiency:  70%
6)  Dimension: L:140mm W:22.3mm H:11.1 mm
 (Lenth*Width*Height)
7) Use Temperature:  .-20℃ +120℃
8) Logo: Customized viable
9) Certification: UL, RoHS
10) Packing Tray packing
11) Payment Terms  T/T
12) Port Shenzhen, DongGuang
13) Lead Time 3-7 days for sample order,7-15 days for mass product
14) Application Linear reflector

COB Light Source

Shinland Linear Reflector
CITIZEN LUMINUS CREE BRIDGELUX OSRAM LUMILEDS XICATO LUMENS NICHIA
CLU038 CXM-18 CXA25 V18 Gen6 Soleriq S19 1208 XTM-19 EDC-57C-20 NVCxL024Z
CLU721     V18 Gen7       EDC-57C-30 NVExH048Z
      Vero18          NFCxL060B
                NFCxJ108B
                NFDxJ130B

OUR CERTIFICATE

certificate

OUR WORKSHOP

factory

OUR EXHIBITION

exhibition

OUR TEAM

team

Packaging

packaging11
packaging10
packaging12
packaging 9
