SL-PL-QJ-055A

Product Item: SL-PL-QJ-055A-US/SL-PL-QJ-055A-M/SL-PL-QJ-055A-F/SL-PL-QJ-055A-W

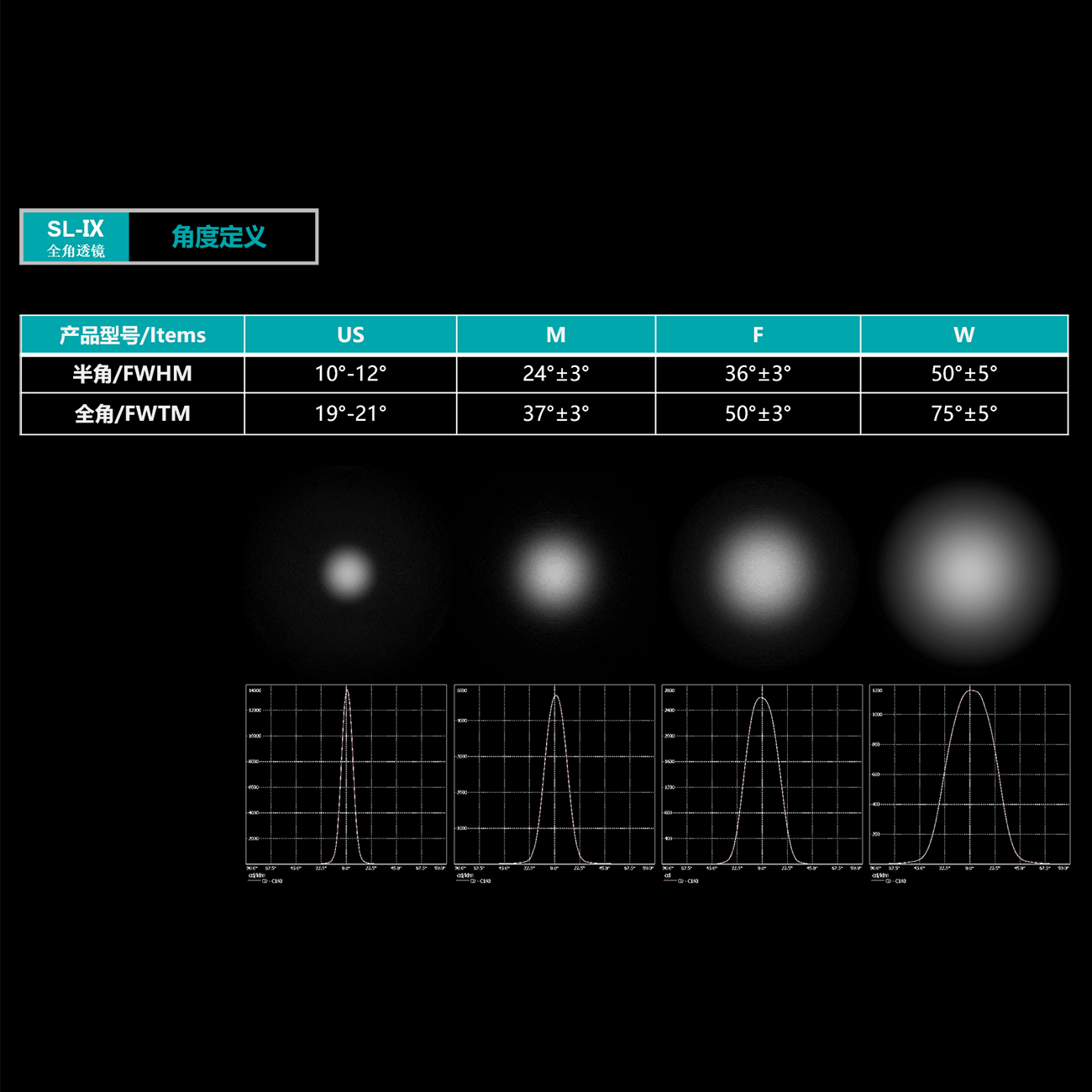

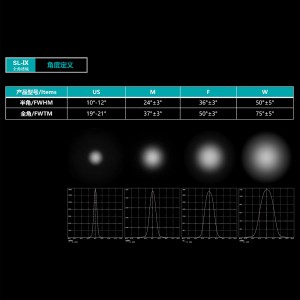

Beam Angle: 11(Les6)/24°/36°/50°

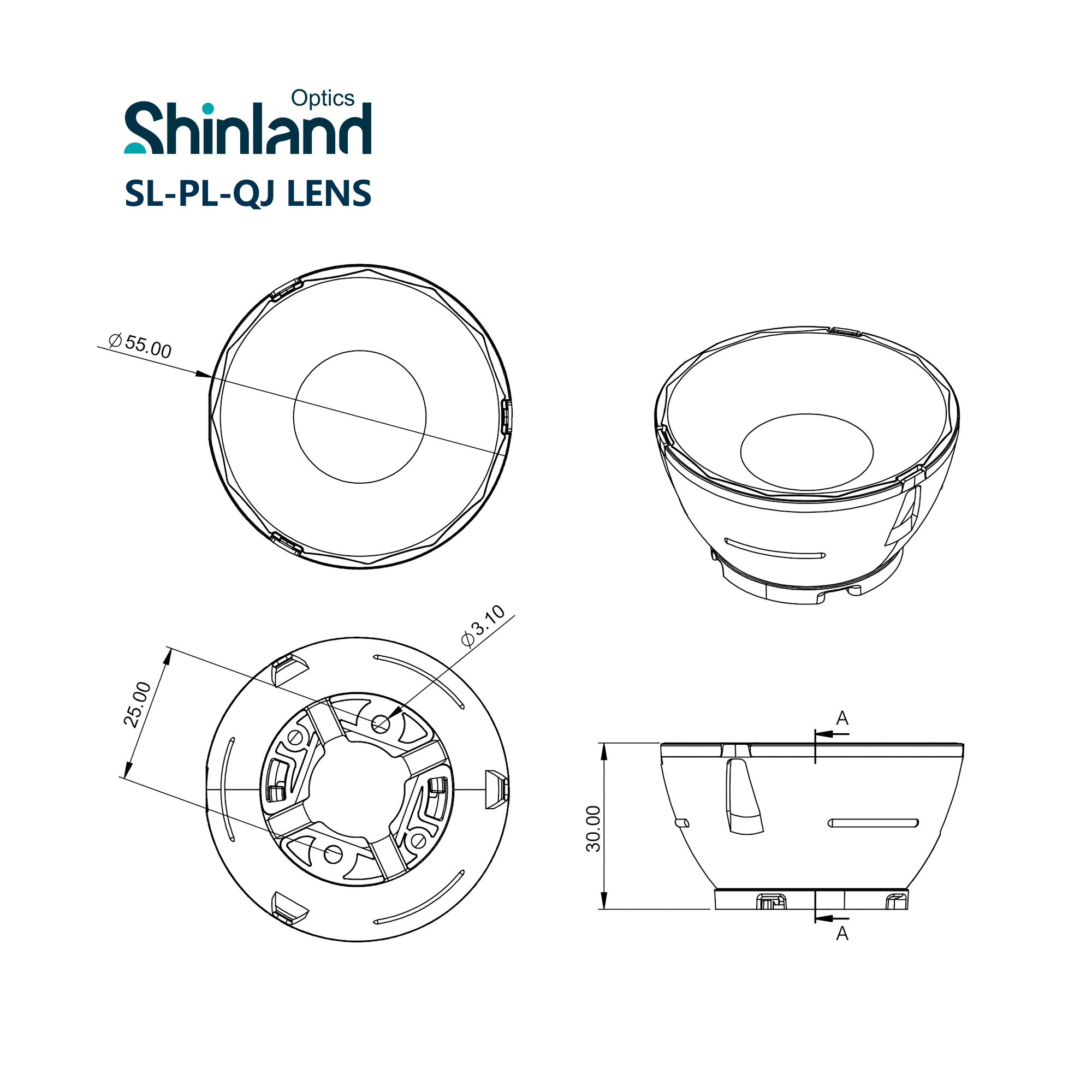

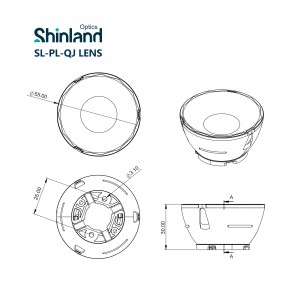

Size: Φ:55mm H:26.3mm Φ:24.6mm

Efficiency: 83%

Matched Light Source: US(Les6), M/F/W(Les11)

LED：V6HD/E6CA/E8CA/V10/CXM-4/CXM-6/CXM-9 AC/CXM-11/CMB 18

Materials: PC

Place of Origin: Guangdong, China

Brand Name: Shinland

FOB Price: US $0.5 - 9,999 / Piece

Min.Order Quantity: 100 Piece/Pieces

Supply Ability: 10000 Piece/Pieces per Month

Send email to us

Product Detail

1) Type:	Shinland QJ Series Lens
2) Model Number:	SL-PL-QJ-055A-US/SL-PL-QJ-055A-M/SL-PL-QJ-055A-F/SL-PL-QJ-055A-W
3) Material:	PC
4) View Angle(Fwhm):	11°/24°/36°/50°
5) Reflective Efficiency:	83%
6) Dimension:	Φ:55mm H:26.3mm Φ:24.6mm
7) Logo:	Customized viable
8) Certification:	UL, RoHS
9) Packing	Tray packing
10) Payment Terms	T/T
11) Port	Shenzhen, DongGuang
12) Lead Time	3-7 days for sample order,7-15 days for mass product
13) Application	Mainly for downlight

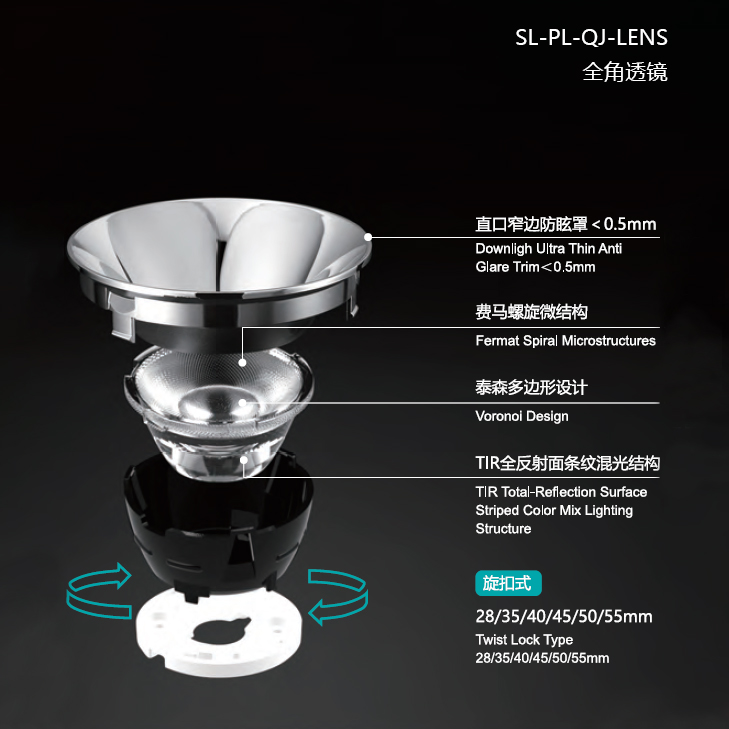

14) Key Features	Full& Concentrated light pattern: High peak intensity. Clear of Different Size Light Pattern: Easy to distinguish US/S/M/F/W beam angle. Smooth Edge Transition: Smooth light pattern with no obvious cut-off lines. Low Glare & High Efficiency：UGR＜6，high efficiency. Upgraded Aseemble Method: Can exchangeble with DG&JY Series lens.
