SL-PL-QJ-028A

Short Description:

Product Item: SL-PL-QJ-028A-S/SL-PL-QJ-028A-M/SL-PL-QJ-028A-F/SL-PL-QJ-028A-W
Beam Angle: 15°/24°/36°/50°
Size:Φ:28mm H:13.7mm Φ:7.9mm
Efficiency: 88%
Matched COB LES: Les4
LED: V4HD/CXM-4
Materials: PC
Place of Origin: Guangdong, China
Brand Name: Shinland

FOB Price: US $0.5 - 9,999 / Piece

Min.Order Quantity: 100 Piece/Pieces

Supply Ability: 10000 Piece/Pieces per Month

Send email to us

Product Detail

Product Tags

Product Specification

1) Type:	Shinland QJ Series Lens
2) Model Number:	SL-PL-QJ-028A-S/SL-PL-QJ-028A-M/SL-PL-QJ-028A-F/SL-PL-QJ-028A-W
3) Material:	PC

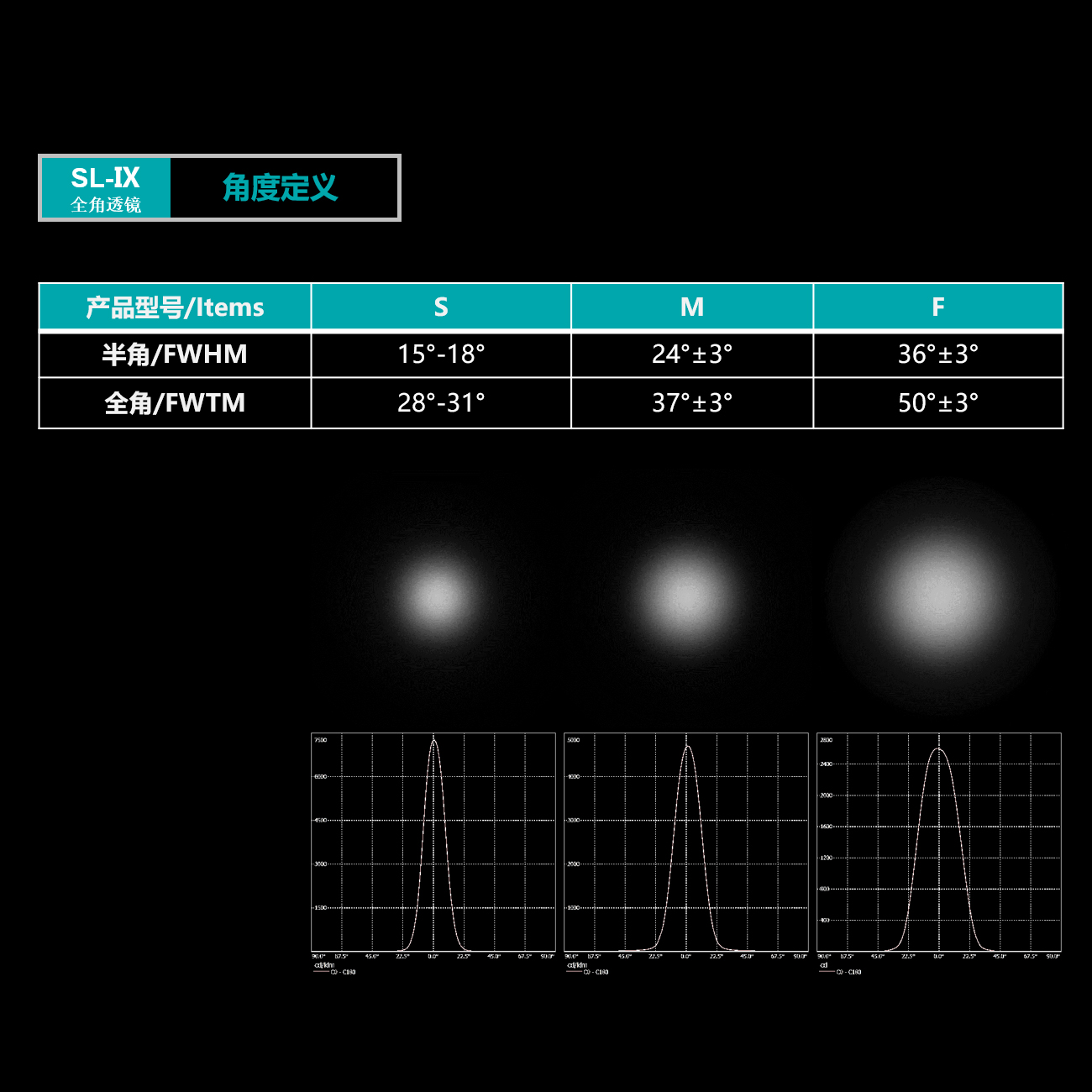

4) View Angle(Fwhm):	15°/24°/36°/50°
5) Reflective Efficiency:	88%

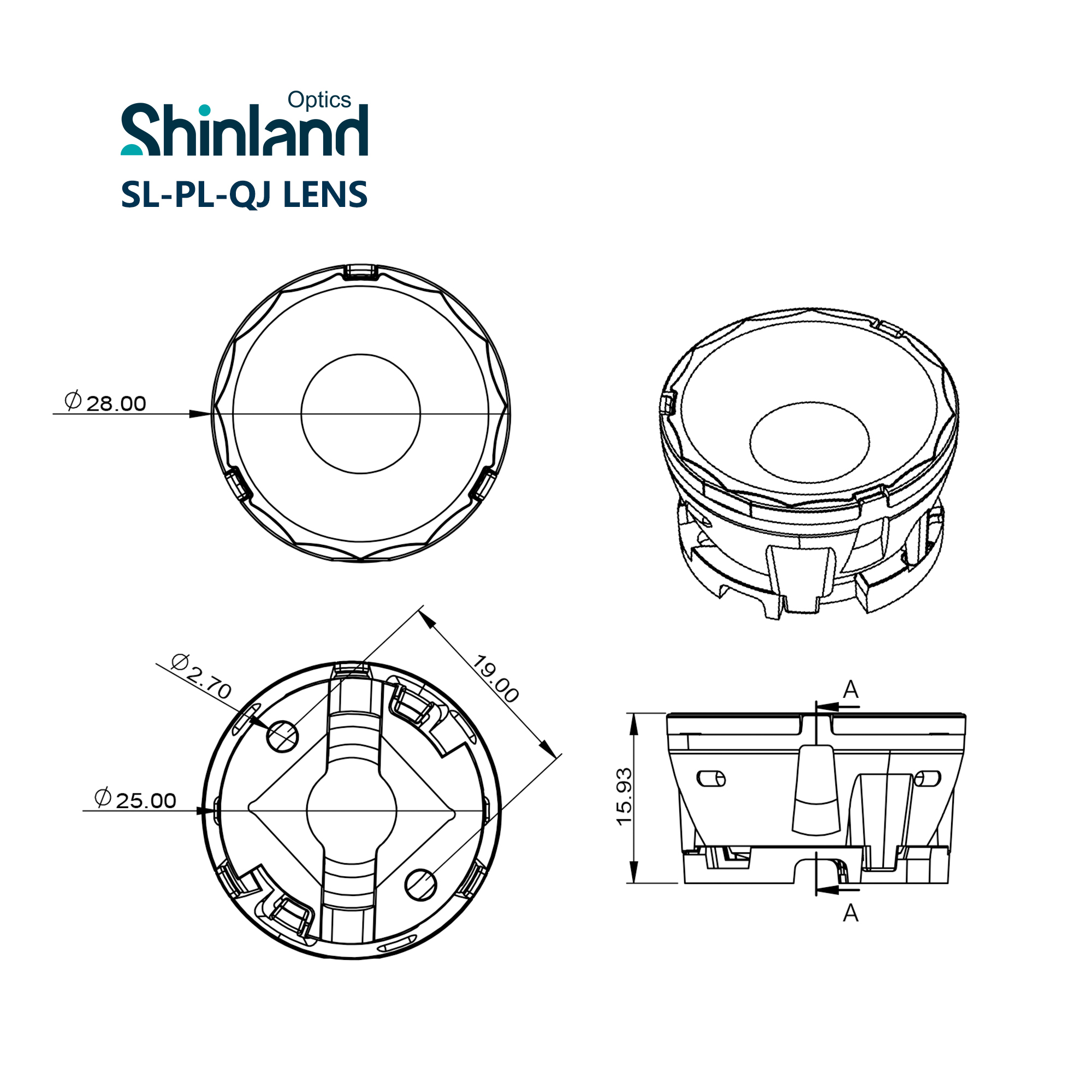

6) Dimension:	Φ:28mm H:13.7mm Φ:7.9mm
7) Logo:	Customized viable
8) Certification:	UL, RoHS
9) Packing	Tray packing
10) Payment Terms	T/T
11) Port	Shenzhen, DongGuang
12) Lead Time	3-7 days for sample order,7-15 days for mass product
13) Application	Mainly for downlight

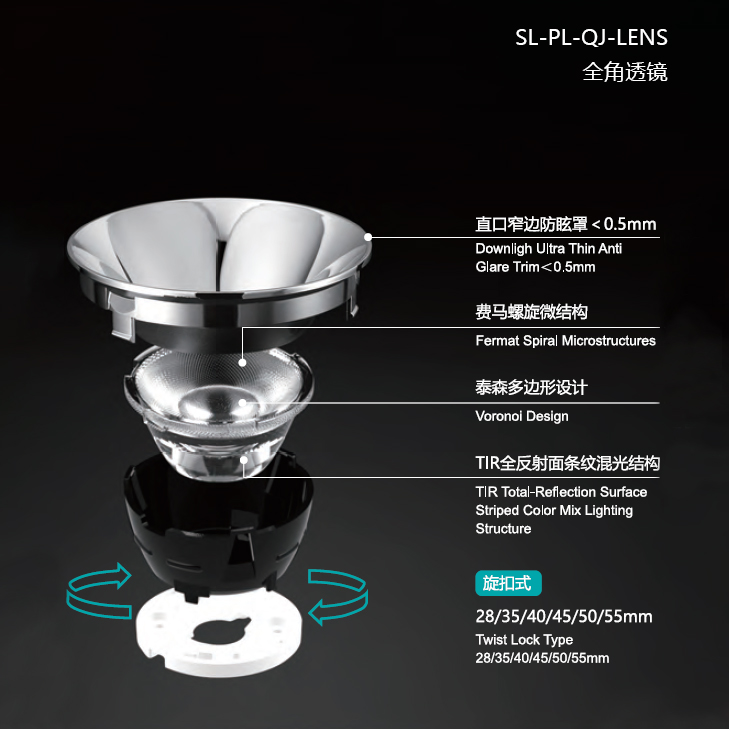

14) Key Features	Full& Concentrated light pattern: High peak intensity. Clear of Different Size Light Pattern: Easy to distinguish US/S/M/F/W beam angle. Smooth Edge Transition: Smooth light pattern with no obvious cut-off lines. Low Glare & High Efficiency：UGR＜6，high efficiency. Upgraded Aseemble Method: Can exchangeble with DG&JY Series lens.
