Aluminum Plating PC SL-050K SL-II

Short Description:

Place of Origin: Guangdong, China
Brand Name: Shinland
Material: Optical grade PC, Optical grade PC
Shape: Round
Style: Optical PC reflector
Color: Vaccum Aluminum Plating
Diameter: Φ: 50.0mm H: 22.7mm Φ: 20.0mm
Angle: 11°, 22°, 24°,30°,38°,47°,50°,51°
Application: Led lights
Certification:ROHS,UL
Packing: Dust-proof, shock-proof packing, Tray packing


Product Detail

Product Tags

Product Specification

1) Type: Optical grade PC reflector for led light
2) Model Number: SL-050K-S
SL-050K-M
SL-050K-F
SL-050K-L
3) Material: PC

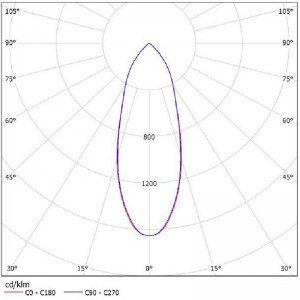

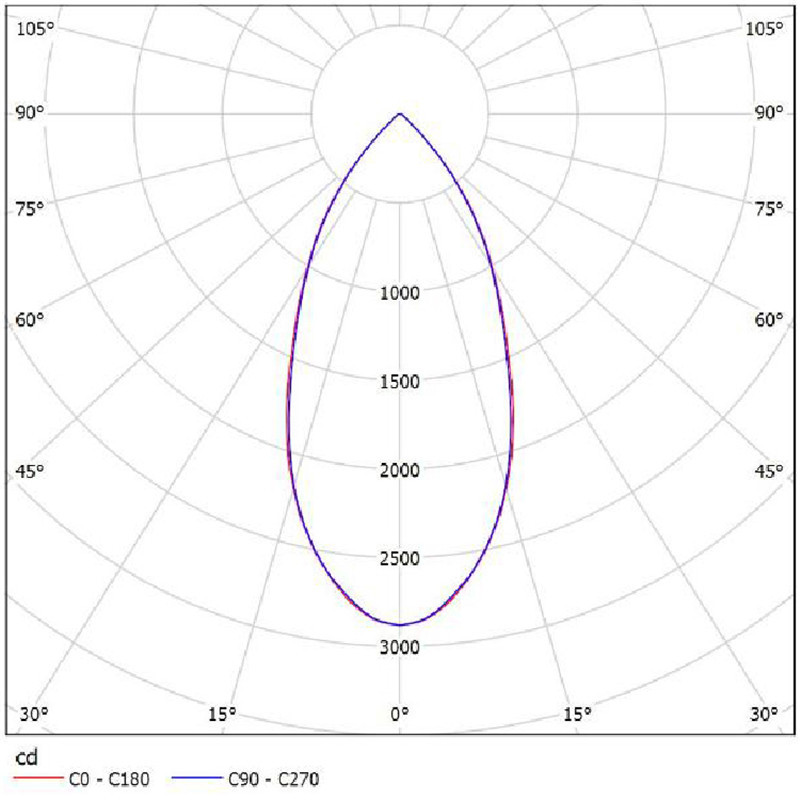

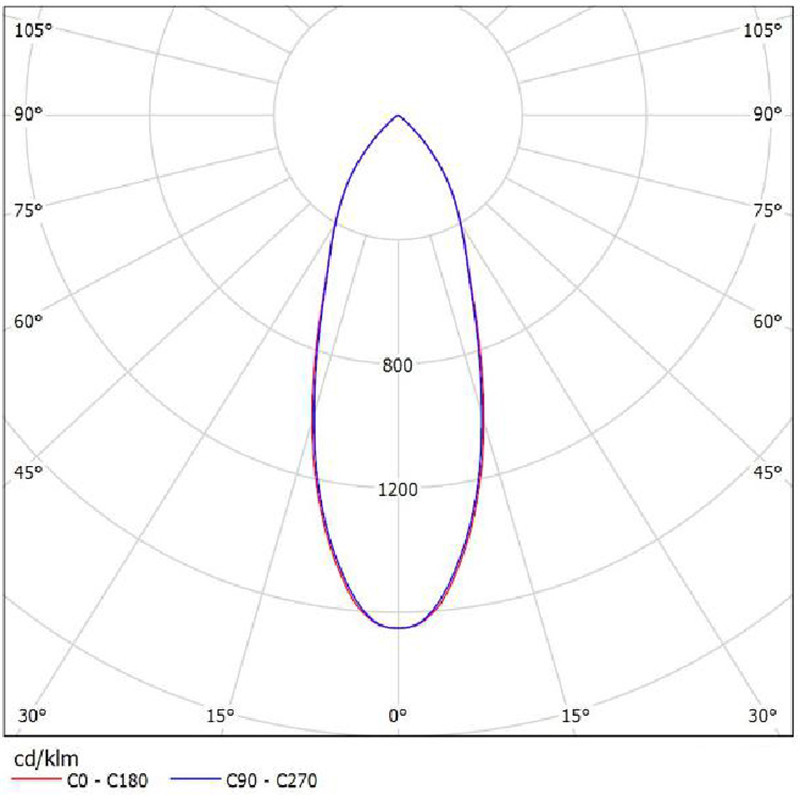

4) View Angle(Fwhm):  11°, 22°, 24°,30°,38°,47°,50°,51°
5)  Reflective Efficiency:  91%

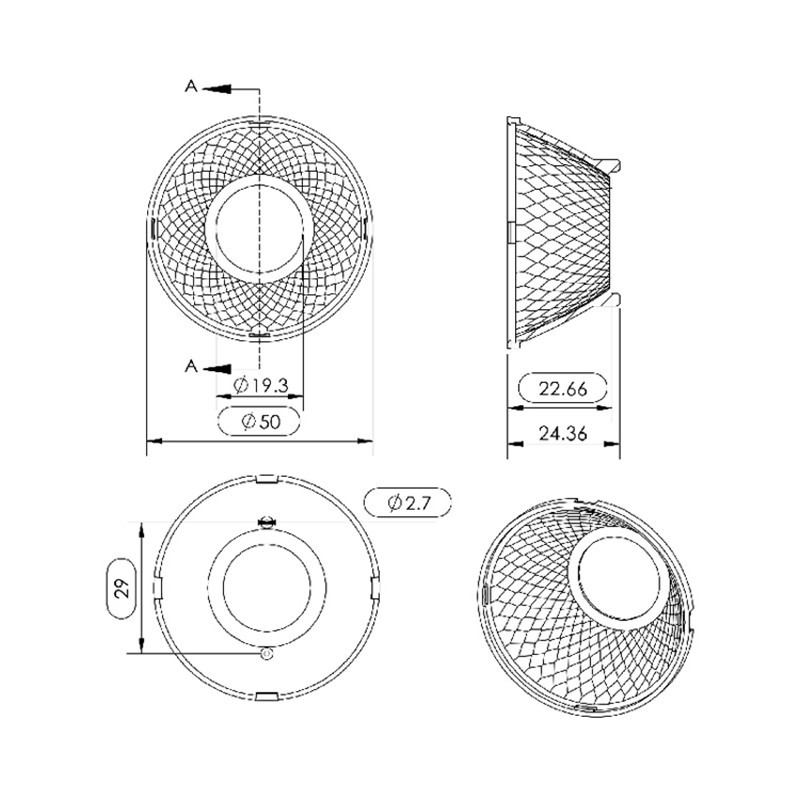

6)  Dimension: Φ:50.0mm H:22.7mm Φ:20.0mm (diameter*height*buttom diameter)
7) Use Temperature:  -20℃ +120℃
8) Logo: Customized Available
9) Certification: UL, RoHS
10) Packing Tray packing
11) Payment Terms T/T
12) Port Shenzhen, DongGuang
13) Lead Time 3-7 days for sample order,7-15 days for mass product
14) Application Spotlight, down light, track light ..ect

COB Light Source

CITIZEN LIMINUS CREE BRIDGELUX OSRAM LUMILEDS TRIDONIC XICATO SAMSUNG LUUMENS NICHIA
CLU028 CXM-6  CXA13   V10 Gen6 Soleriq S9 105 G4-10 XTM-9 LC010C EDC-38C NJCxS024Z
CLU038 CXM-7  CXA15   V10 Gen7 Soleriq S13 1202/1203 G4-17   LC020C EDC-47C NVCxL024Z
CLU701 CXM-9 CXA18  V13 Gen6    1204/1205     LC006B EDC-57C-20 NVExJ048Z
CLU711 CXM-14 CXA1830 V13 Gen7   1208     LC040C   NTCxS024B
CLU721 CXM-18   V15 Gen6         LC026B   NFCxL036B
CLC020 CHM-6   V18 Gen6         LC033B   NFCxL060B
  CHM-9    Vero13             NFCxJ108B
  CHM-11    E8              NFDxJ130B
  CHM-14   VestaTW9
  CDM-6   VestaTW13
  CDM-9/CTM-9
  CDM-14/CTM-14
  CDM-18/CTM-18

COB Holder

SL-CLL020-HD-B SL-CXM-6/7-HD-B SL-CLU700-HD-B SL-CXA15-HD-B SL-CLL02X-HD-B SL-MINI-HD-B Sl-CLL020-HD--B SL-XTM-19-HD-B SL-MINI-HD-B  SL-EDC-38C-HD-B SL-MINI-HD-B
SL-CLU700-HD-B SL-CXM-6/7-HD-B SL-CXA15-HD-B SL-CLL02X-HD-B SL-CHM-14-HD-B SL-1916-HD-B SL-G4-17-HD-B   SL-MINI-HD-B SL-EDC-47C-HD-B SL-MINI-HD-B
SL-CLU710-HD-B SL-CXM-9-HD-B SL-CXA18-HD-B SL-V13-HD-B   SL-LHC1-1208-HD-B     SL-CLL020-HD-B SL-EDC-57C-20-HD-B SL-LHC1-1208-HD-B
SL-CLU720-HD-B SL-CXM-14-HD-B SL-CXA1830-HD-B SL-CHM-14-HD-B   SL-LHC1-1208-HD-B     SL-1916-HD-B   SL-MINI-HD-B
SL-CLC020-HD-B SL-CXM-18-HD-B   SL-G4-17-HD-B         SL-CXM-18-HD-B   SL-1916-HD-B
  SL-CXM-6/7-HD-B   SL-CXM-18-HD-B         SL-CXM-18-HD-B   SL-1916-HD-B
  SL-CXM-9-HD-B   SL-Vero13-HD-B             SL-LHC1-1208-HD-B
  SL-CLU720-HD-B   SL-CXM-6/7-HD-B             SL-LHC1-1208-HD-B
  SL-CHM-14-HD-B   SL-VestaTW9-HD-B
  SL-CDM/CTM-9-HD-B   SL-VestaTW13-HD-B
  SL-CDM/CTM-9-HD-B
  SL-CDM/CTM-14-HD-B
  SL-CDM/CTM-18-HD-B
