Plastic Light Reflectors SL-050D

Short Description:

Place of Origin: Guangdong, China
Brand Name: Shinland
Material: Optical grade PC, Optical grade PC
Shape: Round
Style: Optical PC reflector
Color: Vaccum Aluminum Plating
Diameter: Φ: 50mm H: 35.1 mm Φ: 11.5mm
Angle: 15°, 24°, 38°, 60°
Endure Temperature: -35℃ +135℃
Application: Led lights
Certification: ROHS,UL
Packing: Dust-proof, shock-proof packing, Tray packing

Send email to us

Product Detail

Product Tags

Product Specification

1) Type:	Optical grade PC reflector for led light
2) Model Number:	SL-05015D， SL-05024D, SL-05038D, SL-05060D
3) Material:	PC

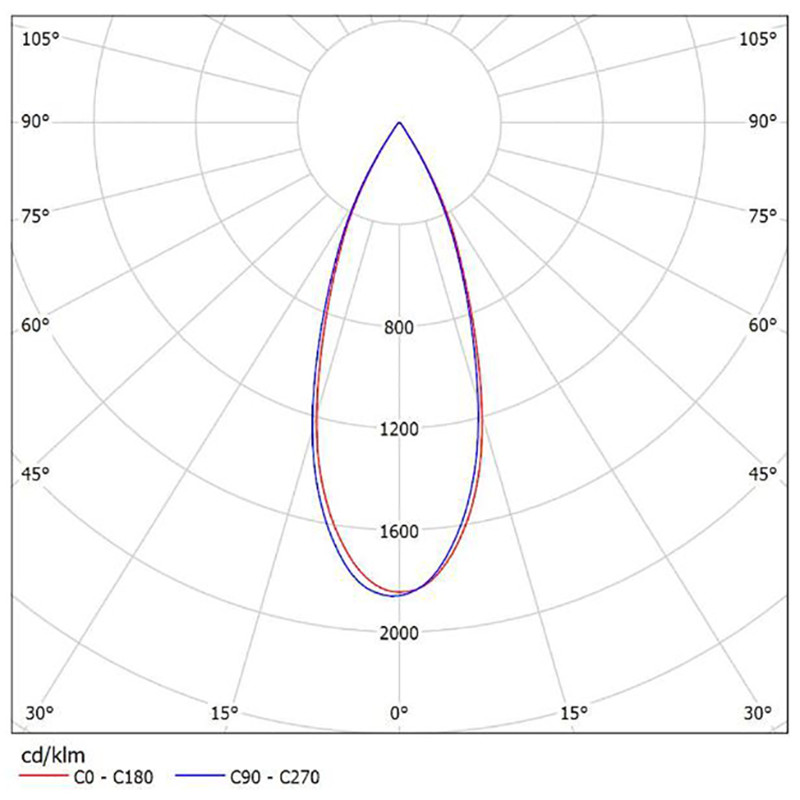

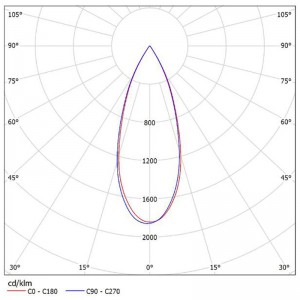

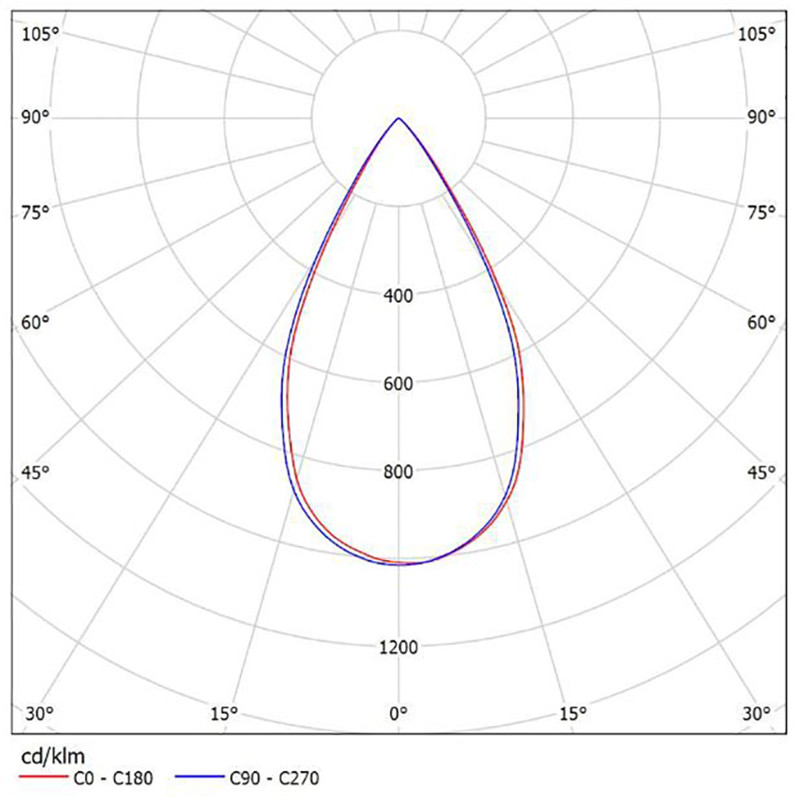

4) View Angle(Fwhm):	15°, 24°, 38°, 60°
5) Reflective Efficiency:	90%

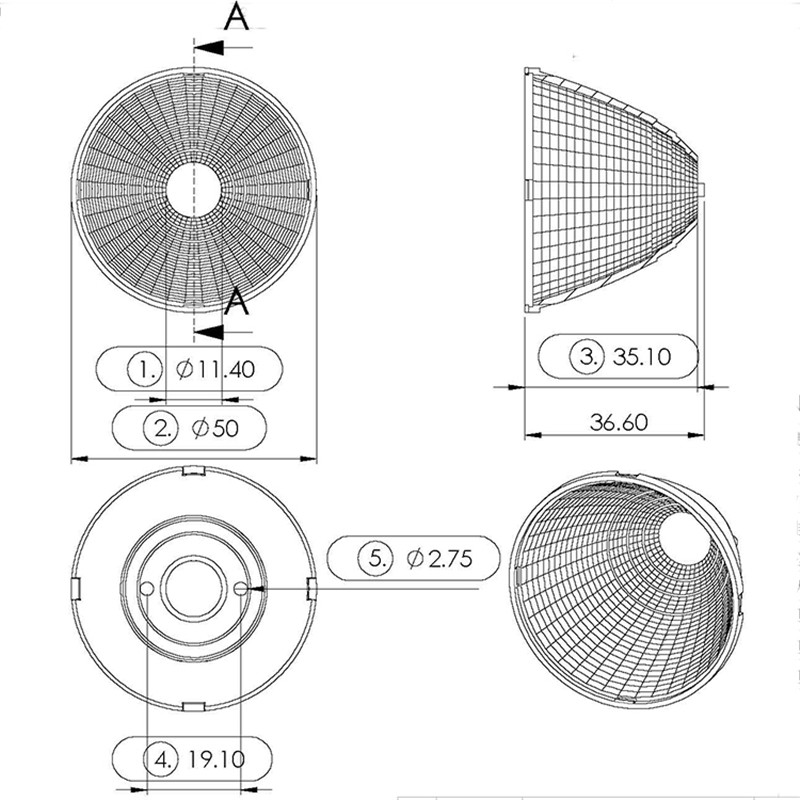

6) Dimension:	Φ:50mm H:35.1 mm Φ:11.5mm(DiameterHeightButtom diameter)
7) Use Temperature:	-35℃ +135℃
8) Logo:	Customized Available
9) Certification:	UL, RoHS
10) Packing	Tray packing
11) Payment Terms	T/T
12) Port	Shenzhen, DongGuang
13) Lead Time	3-7 days for sample order,7-15 days for mass product
14) Application	Spotlight, down light, track light ..ect

COB Light Source

CITIZEN	LUMINUS	CREE	BRIDGELUX	OSRAM	LUMILEDS	TRIDONIC	SAMSUNG	LUMENS	NICHIA
CLU028	CXM-9	CXA15	V10 Gen6	Soleriq S8	105	G4-10	LC020C	EDC-38C	NFCxL036B
	CHM-9		V10 Gen7	Soleriq S9	1202/1203		LC006B
			blx C8	Soleriq S10
			E8
