Reflector for COB Led SL-045C

Short Description:

Place of Origin: Guangdong, China
Brand Name: Shinland
Material: Optical grade PC, Optical grade PC
Shape: Round
Style: Optical PC reflector
Color: Vaccum Aluminum Plating
Diameter: Φ: 45.0mm H: 20.1 mm Φ: 19mm
Angle: 24°, 50°
Endure Temperature: -35℃ +135℃
Application: Led lights
Certification: ROHS,UL
Packing: Dust-proof, shock-proof packing, Tray packing

Send email to us

Product Detail

Product Tags

Product Specification

1) Type:	Optical grade PC reflector for led light
2) Model Number:	SL-04524C， SL-04550C
3) Material:	PC

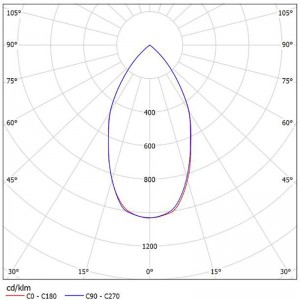

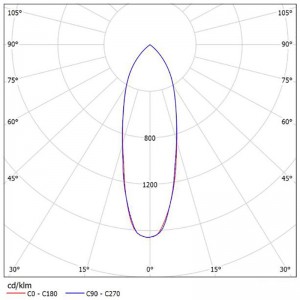

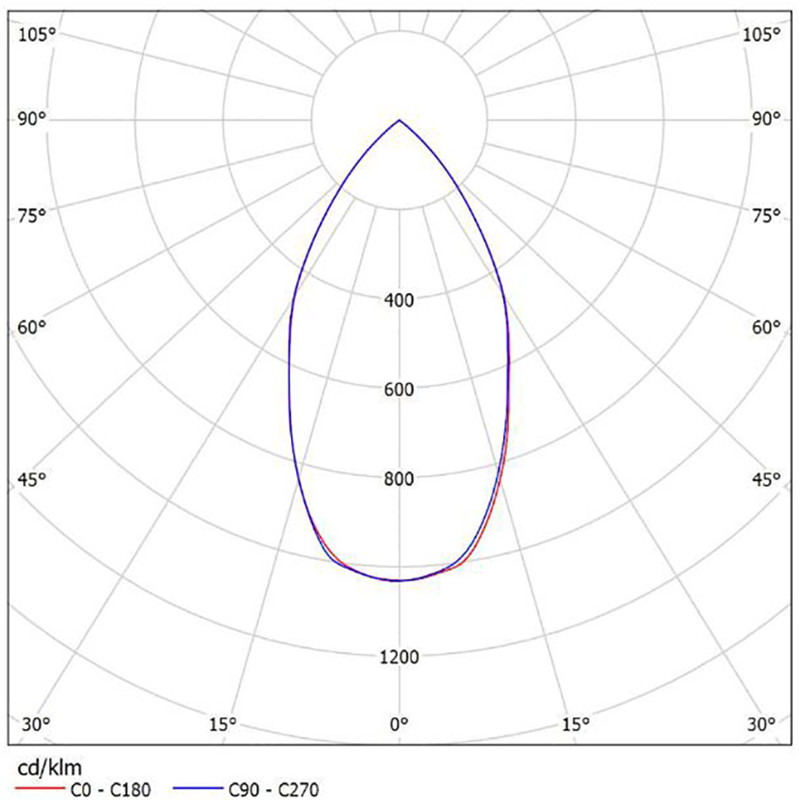

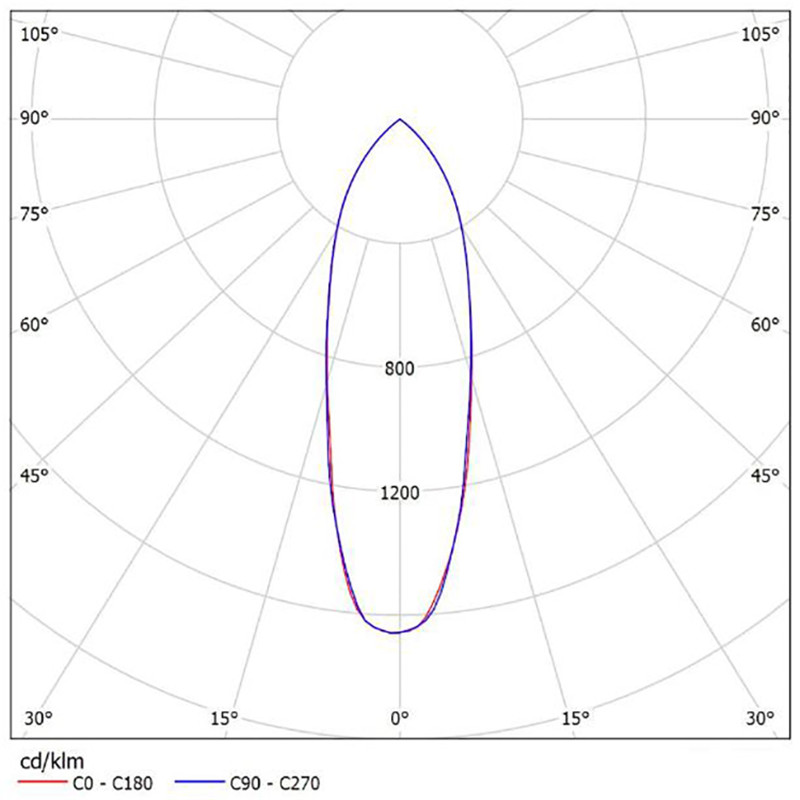

4) View Angle(Fwhm):	24°, 50°
5) Reflective Efficiency:	91%

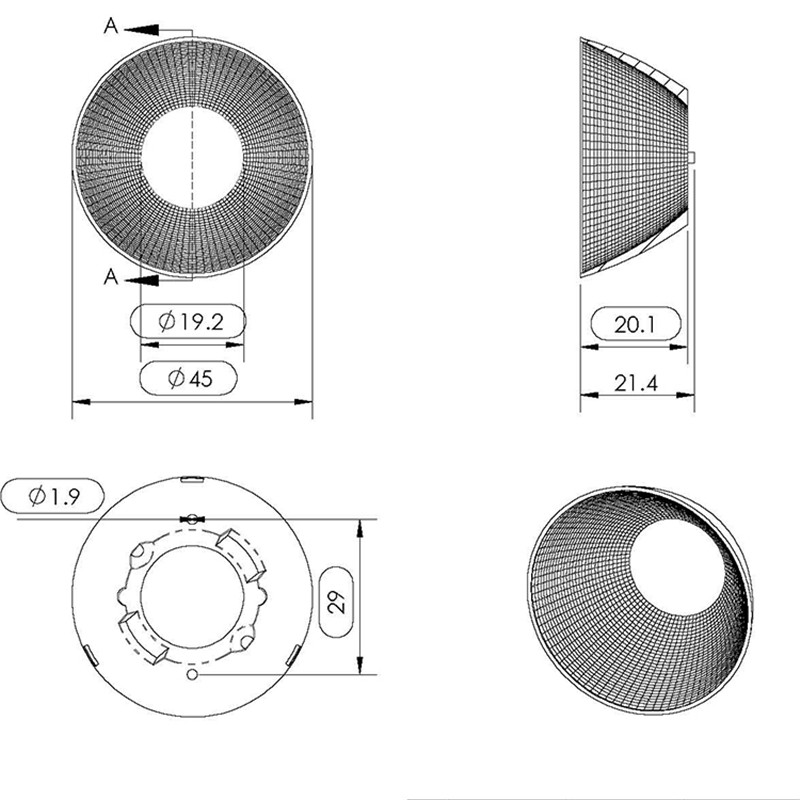

6) Dimension:	Φ:45.0mm H:20.1 mm Φ:19mm(DiameterHeightButtom diameter)
7) Use Temperature:	-35℃ +135℃
8) Logo:	Customized Available
9) Certification:	UL, RoHS
10) Packing	Tray packing
11) Payment Terms	T/T
12) Port	Shenzhen, DongGuang
13) Lead Time	3-7 days for sample order,7-15 days for mass product
14) Application	Spotlight, down light, track light ..ect

COB Light Source

CITIZEN	LUMINUS	CREE	BRIDGELUX	OSRAM	LUMILEDS	XICATO	LUMENS	NICHIA
CLU038	CXM-18	CXA25	V18 Gen6	Soleriq S19	1208	XTM-19	EDC-57C-20	NVCxL024Z
CLU721			V18 Gen7				EDC-57C-30	NVExH048Z
			Vero18					NFCxL060B
								NFCxJ108B
								NFDxJ130B
