45mm Reflector Manufacturer – Aluminum Plating PC Reflector SL-A-069C – Shinland Detail:

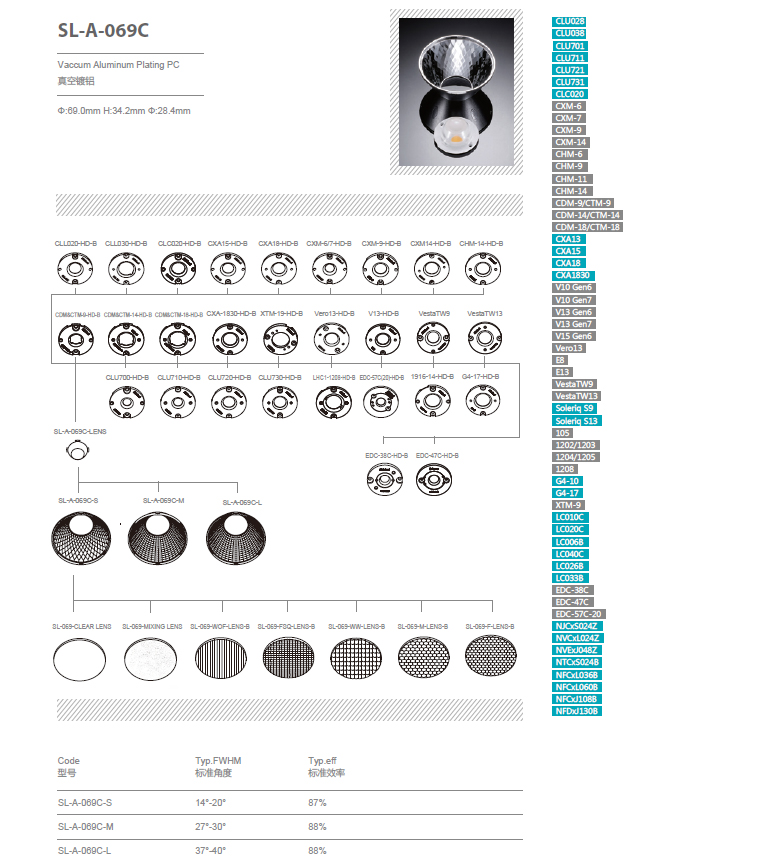

Product Specification
| 1) Type: | Optical grade PC reflector for led light | ||
| 2) Model Number: | SL-A-069C-S SL-A-069C-M SL-A-069C-L |
||
| 3) Material: | PC | ||

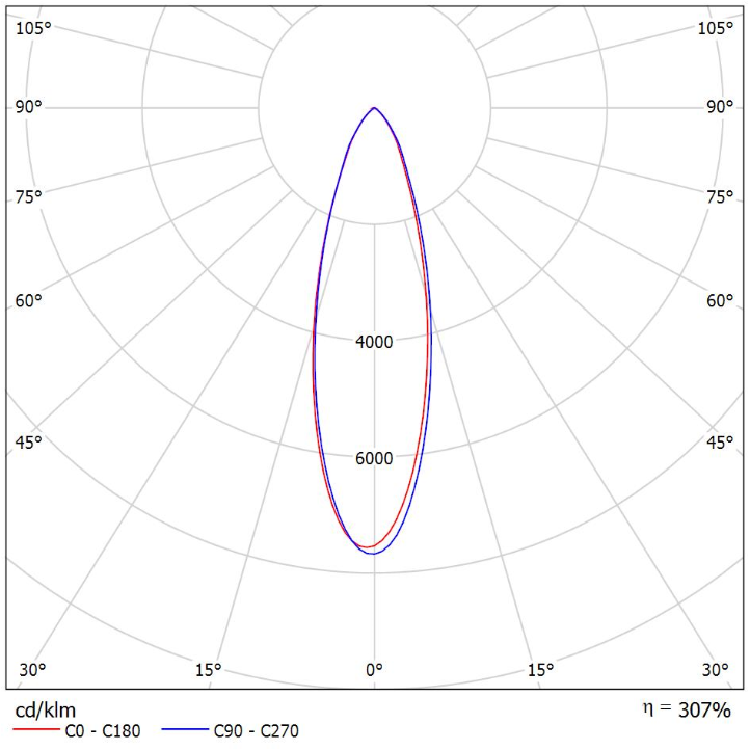

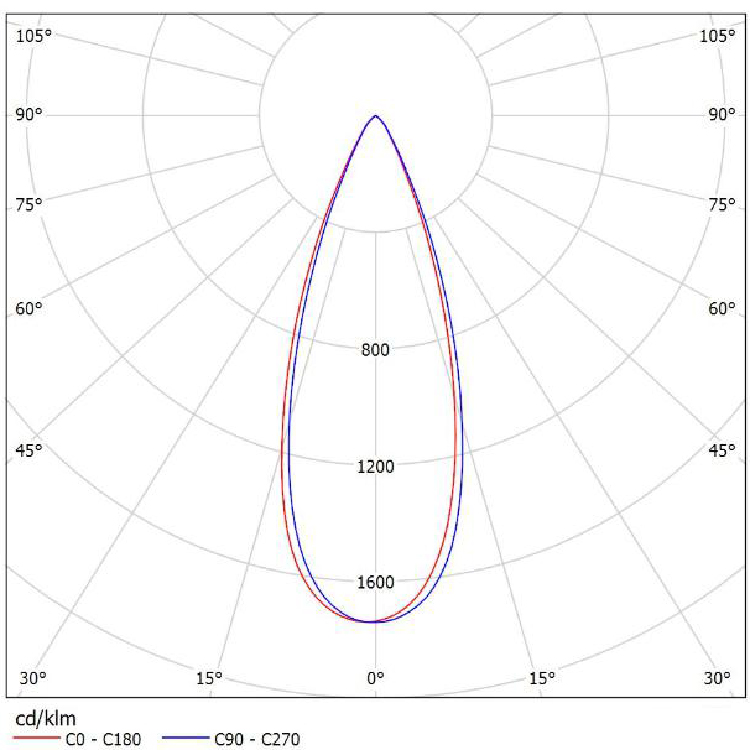

| 4) View Angle(Fwhm): | 14°, 20°，27°, 30°，37°, 40° | ||
| 5) Reflective Efficiency: | 88% | ||

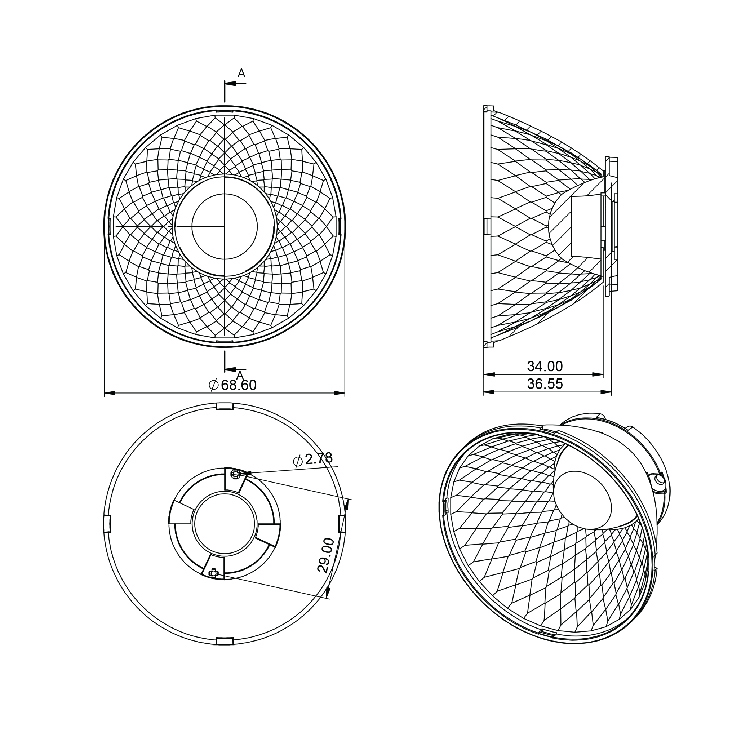

| 6) Dimension: | Φ:69.0mm H:34.2mm Φ:28.4mm (diameter*height*buttom diameter) |
||
| 7) Use Temperature: | -20℃ +120℃ | ||
| 8) Logo: | Customized viable | ||
| 9) Certification: | UL, RoHS | ||
| 10) Packing | Tray packing | ||
| 11) Payment Terms | T/T | ||
| 12) Port | Shenzhen, DongGuang | ||
| 13) Lead Time | 3-7 days for sample order,7-15 days for mass product | ||
| 14) Application | Spotlight, down light, track light ..ect | ||
COB Light Source
| CITIZEN | LIMINUS | CREE | BRIDGELUX | OSRAM | LUMILEDS | TRIDONIC | XICATO | SAMSUNG | LUUMENS | NICHIA |
| CLU028 | CXM-6 | CXA13 | V10 Gen6 | Soleriq S9 | 105 | G4-10 | XTM-9 | LC010C | EDC-38C | NJCxS024Z |
| CLU038 | CXM-7 | CXA15 | V10 Gen7 | Soleriq S13 | 1202/1203 | G4-17 | LC020C | EDC-47C | NVCxL024Z | |
| CLU701 | CXM-9 | CXA18 | V13 Gen6 | 1204/1205 | LC006B | EDC-57C-20 | NVExJ04BZ | |||
| CLU711 | CXM-14 | CXA1830 | V13 Gen7 | 1208 | LC040C | NTCxS024B | ||||
| CLU721 | CHM-6 | Vero13 | LC026B | NFCxL036B | ||||||
| CLU731 | CHM-9 | E8 | LC033B | NFCxL060B | ||||||
| CLC020 | CHM-11 | E13 | NFDxJ130B | |||||||
| CHM-14 | VestaTW9 | |||||||||
| CDM-9/CTM-9 | VestaTW13 | |||||||||
| CDM-14/CTM-14 | ||||||||||
| CDM-18/CTM-18 |
COB Holder
| SL-CLL020-HD-B | SL-CXM-6/7-HD-B | SL-CLU700-HD-B | SL-CXA15-HD-B | SL-CLL02X-HD-B | SL-MINI-HD-B | Sl-CLL020-HD–B | SL-XTM-19-HD-B | SL-MINI-HD-B | SL-EDC-38C-HD-B | SL-MINI-HD-B |
| SL-CLL030-HD-B | SL-CXM-6/7-HD-B | SL-CXA15-HD-B | SL-CLL02X-HD-B | SL-CHM-14-HD-B | SL-1916-HD-B | SL-G4-17-HD-B | SL-MINI-HD-B | SL-EDC-47C-HD-B | SL-MINI-HD-B | |
| SL-CLU700-HD-B | SL-CXM-9-HD-B | SL-CXA18-HD-B | SL-V13-HD-B | SL-LHC1-1208-HD-B | SL-CLL020-HD-B | SL-EDC-57C-20-HD-B | SL-LHC1-1208-HD-B | |||
| SL-CLU710-HD-B | SL-CXM-14-HD-B | SL-CXA1830-HD-B | SL-CHM-14-HD-B | SL-LHC1-1208-HD-B | SL-1916-HD-B | SL-MINI-HD-B | ||||
| SL-CLU720-HD-B | SL-CXM-6/7-HD-B | SL-Vero13-HD-B | SL-CXM-18-HD-B | SL-1916-HD-B | ||||||
| SL-CLU730-HD-B | SL-CXM-9-HD-B | SL-CXM-6/7-HD-B | SL-CXM-18-HD-B | SL-1916-HD-B | ||||||
| SL-CLC020-HD-B | SL-CLU720-HD-B | SL-CXA18-HD-B | SL-LHC1-1208-HD-B | |||||||
| SL-CHM-14-HD-B | SL-VestaTW9-HD-B | |||||||||
| SL-CDM/CTM-9-HD-B | SL-VestaTW13-HD-B | |||||||||
| SL-CDM/CTM-14-HD-B | ||||||||||
| SL-CDM/CTM-18-HD-B |
OUR CERTIFICATE
OUR WORKSHOP
OUR EXHIBITION
OUR TEAM
Packaging
Product detail pictures:
Related Product Guide:
Our eternal pursuits are the attitude of "regard the market, regard the custom, regard the science" and the theory of "quality the basic, trust the first and management the advanced" for 45mm Reflector Manufacturer – Aluminum Plating PC Reflector SL-A-069C – Shinland , The product will supply to all over the world, such as: Georgia, Swiss, Rwanda, We set a strict quality control system. We have return and exchange policy, and you can exchange within 7 days after receive the wigs if it is in new station and we service repairing free for our products. Please feel free to contact us for further information and we will offer you competitive price list then.
